Endpoints

Endpoints define the routing rules: which public URL maps to which internal upstream service.

Routing Configuration

Each endpoint represents a unique combination of Path and HTTP Method.

Public Path

The path exposed by the Gateway. Supports parameters like /users/{id}.

Upstream Path

The path on your internal server. Parameters are automatically forwarded (e.g., /api/v2/users/{id}).

Immutability & Revisions

Important: Modifying an endpoint in the UI does not affect live traffic. Changes only take effect after you publish a new Revision and apply it to an Environment.

Public URL Structure

Once published, your endpoints become available through a structured URL:

https://your-gateway/tenant/catalog/environment/endpoint-path

Example: https://api.gatefull.com/acme/payments/prod/v1/charge

Supported HTTP Methods

  • Methods: GET, POST, PUT, PATCH, DELETE, OPTIONS, HEAD.
  • Path Parameters: Use curly braces to define dynamic segments (e.g., /users/{id}).
  • Priority: Exact path matches are prioritized over parameterized paths.

UI Usage Guide

Follow these steps to create and manage endpoints.

Step 1: Create an Endpoint

  1. Navigate to Endpoints from the sidebar menu.
  2. Click the "Create" (or "+") button.
  3. Select the HTTP Method (e.g., GET).
  4. Set the Path (e.g., /api/test) — this is the public-facing route.
  5. Set the Upstream Path (e.g., /api/test) — this is forwarded to your backend.
  6. Click "Save" to create the endpoint.

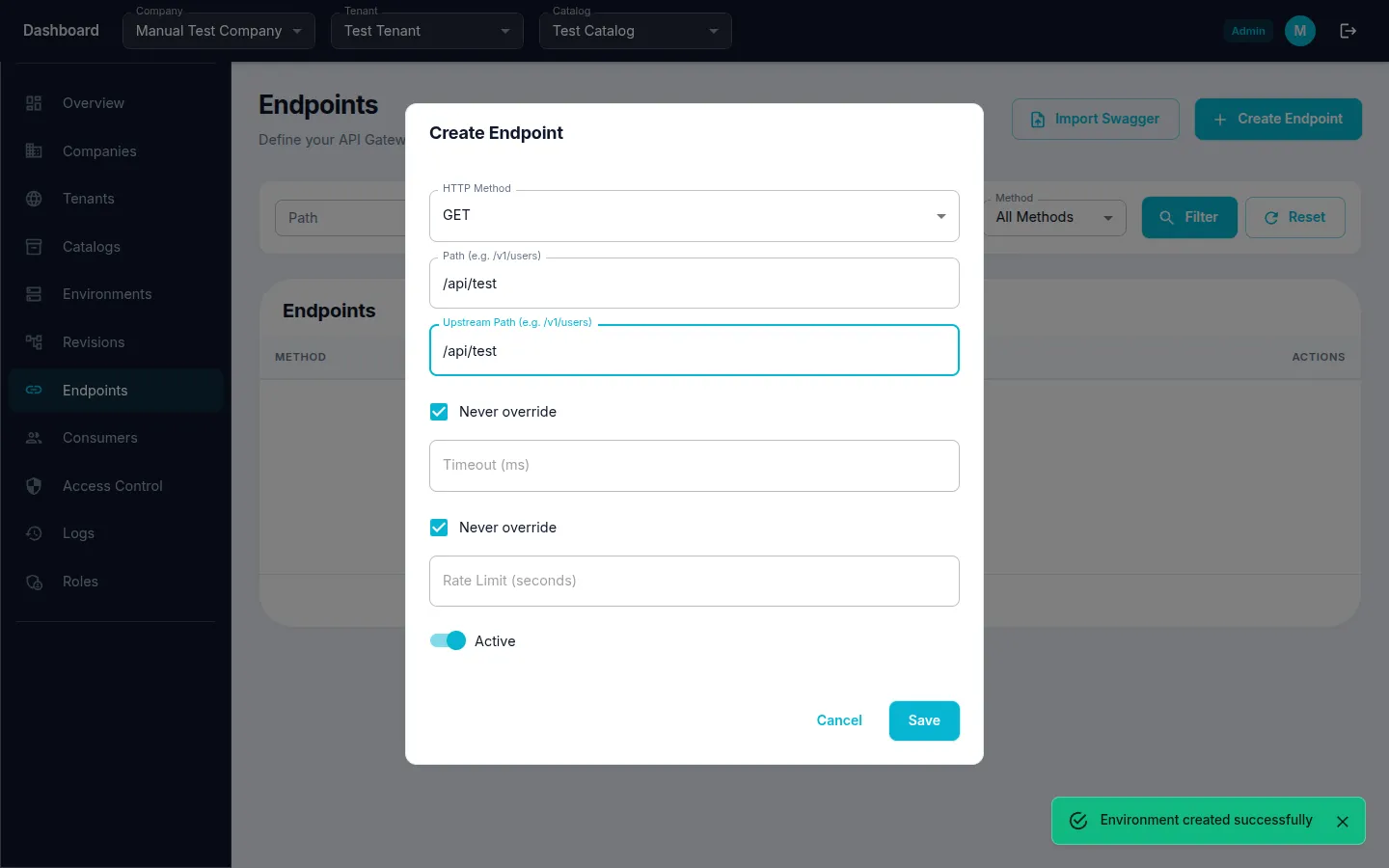

Endpoint creation form filled

Step 2: Create Additional Endpoints

  1. Click the "Create" (or "+") button again.
  2. Select a different HTTP Method (e.g., POST).
  3. Fill in Path and Upstream Path.
  4. Click "Save" to create the endpoint.

Remember: Newly created endpoints are not live until you create and apply a Revision to an Environment.
